Hardie™ Flex Sheet

A smooth, flat panel for a timeless aesthetic

1/4

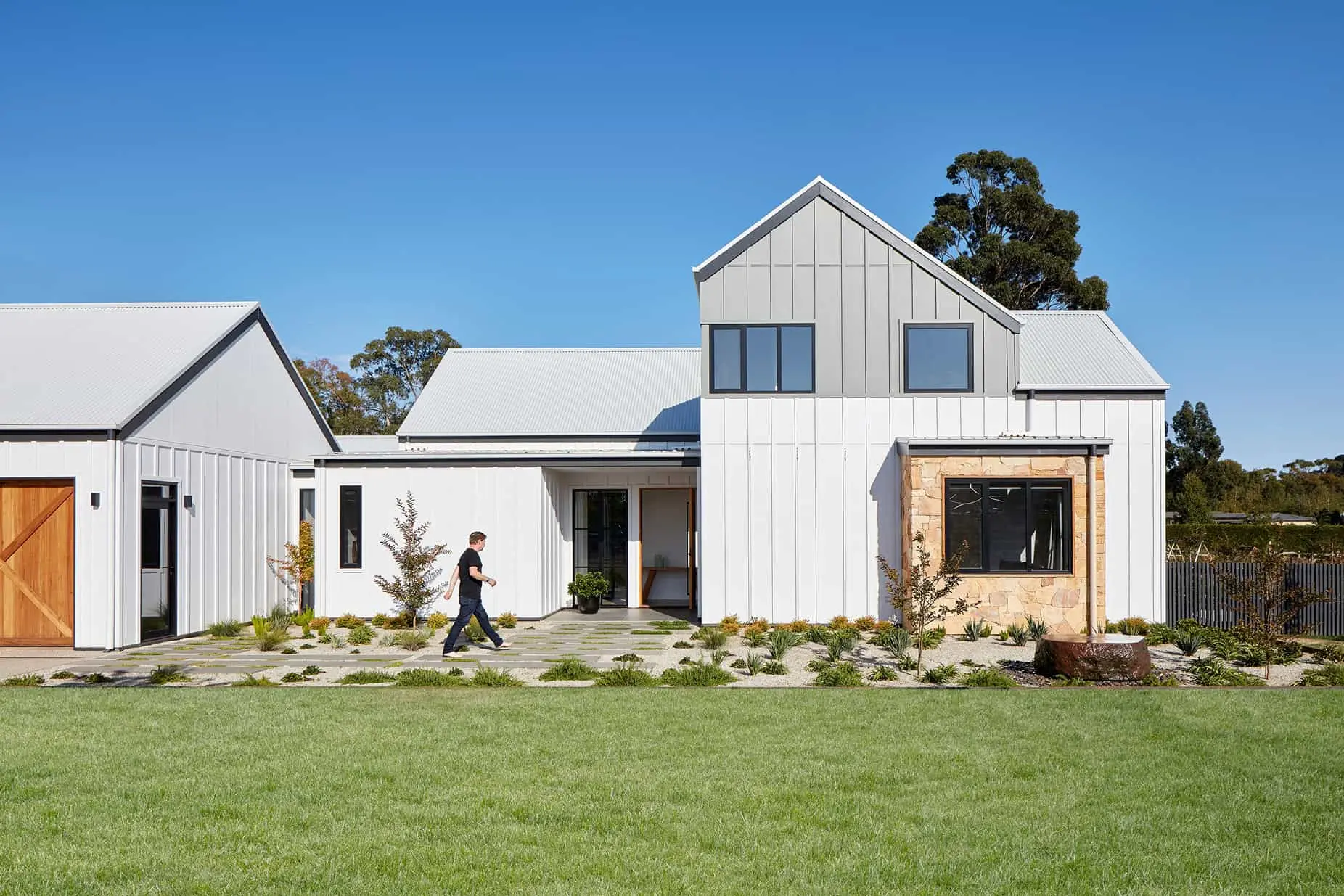

Hardie™ Flex Sheet

Hardie™ Flex Sheet

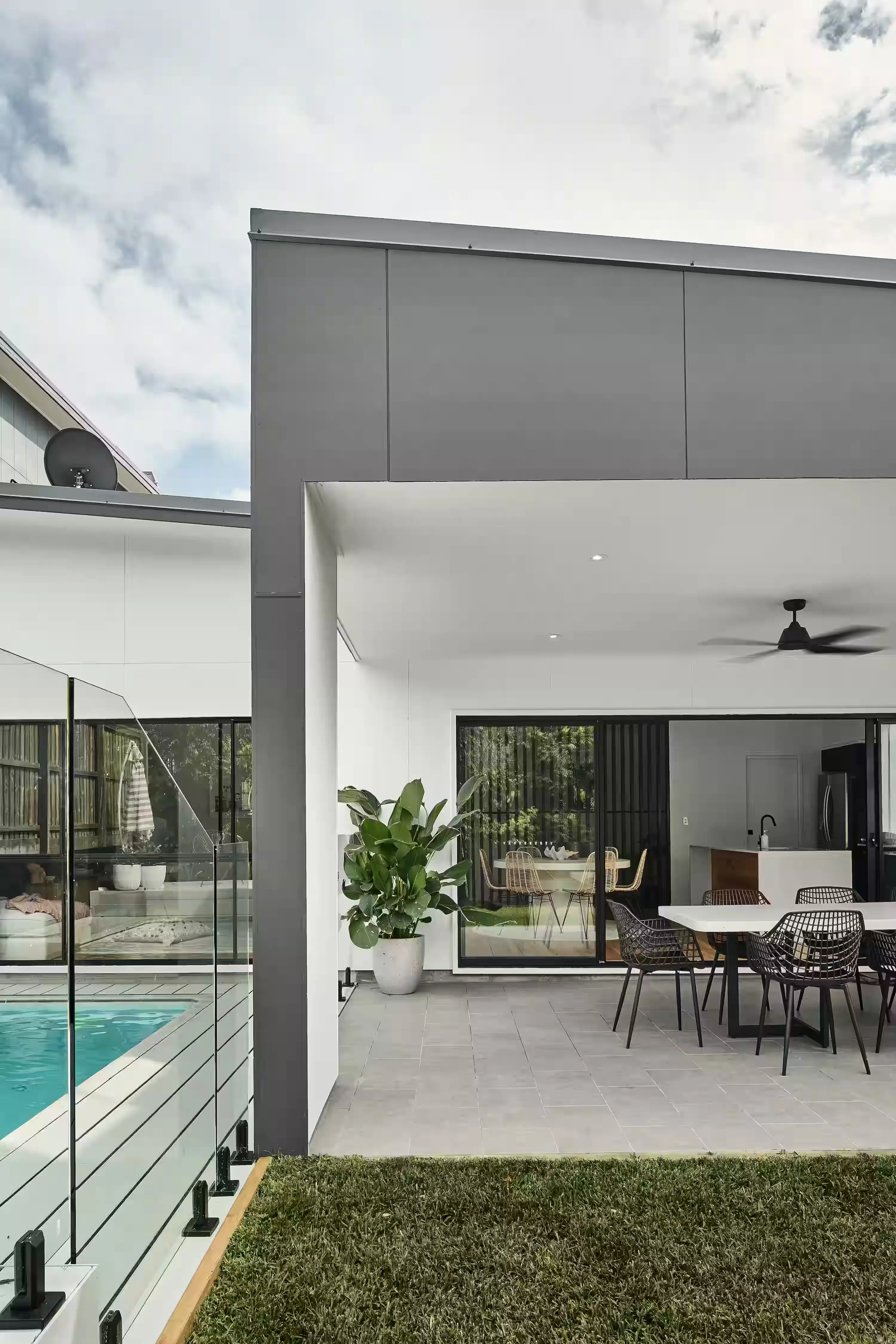

Hardie™ Flex Sheet | Derrer | Happy Haus

Hardie™ Flex Sheet | Derrer | Happy Haus

1/4

We’ve tailored this for you. Select what best describes you.

I’m a

Homeowner

Hardie™ Flex Sheet is a smooth, flat sheet that is painted on-site to create a flat panel look.

It is a square-edged panel in a 6mm thickness for a simple and cost effective cladding and soffit solution.

Read more details

One of the most economical solutions available, Hardie™ Flex Sheet is commonly used for board and batten style cladding. It is a natural, un-sanded sheet that is immediately suitable for a paint finish and the installation could not be easier. For a truly modern look, add battens for design impact.

Show less

Features & Benefits

See Hardie™ Flex Sheet stories from around Australia

Three House: A contemporary home designed for flexibility and longevity

Three House: A contemporary home designed for flexibility and longevity

Get on board. Three Birds Renovations go coastal with board and batten.

Get on board. Three Birds Renovations go coastal with board and batten.

Make home, feel like home

Real home transformations and inspiration

Product Specifications

Product Code	Length (mm)	Width (mm)	Thickness (mm)	Surface Texture	Effective Cover Per Unit (m2)	Effective Width (mm)	Coverage Per Pack (m2)	Weight Per m2*	Weight Per Unit**	Pieces Per Pack	Pack Weight (kg)***
400189	1800	1200	4.5	Smooth	2.16	1200	129.6	6.9	15	60	920
400186	2400	1200	4.5	Smooth	2.88	1200	172.8	6.9	20	60	1220
400184	2700	1200	4.5	Smooth	3.24	1200	194.4	6.9	22.5	60	1375
400182	3000	1200	4.5	Smooth	3.6	1200	216	6.9	25	60	1530
400193	2400	900	4.5	Smooth	2.16	900	129.6	6.9	15	60	920
400171	2400	1200	6	Smooth	2.88	1200	86.4	9.3	26.7	30	825
400169	2700	1200	6	Smooth	3.24	1200	97.2	9.3	30	30	925
400167	3000	1200	6	Smooth	3.6	1200	108	9.3	33.4	30	1030

* M2 weight includes on the wall product only weight taking into account effective coverage. This excludes fasteners, sealants and other accessories.

** Piece weight covers the physical product weight per plank/sheet.

*** Pack weight includes all product and packaging in a full pallet.

Share table

Resources

All the relevant files, certifications and documents for Hardie™ Flex Sheet.

Guides

Best Practice Guide

External Cladding Technical Specification

Specifications

Eaves & Soffits Technical Specification

Warranty

25-Year Warranty

Why choose Hardie™ Fibre Cement?

Modern-Look

Modern look

Provides contemporary clean lines and pared-back aesthetics for homes with simple, bold forms.

Weather-Resistant

Weather resistant

Engineered to stand up to harsh Australian environments, including coastal conditions.

Fire-Resistant

Fire resistant

Will not contribute to the spread of fire.

Resistant-to-Moisture-Damage

Resistant to moisture damage

Offers dimensional stability resisting swelling, movement and warping.

Easy-to-Paint

Flexible colour

Pre-primed or pre-sealed and ready to paint in any colour.

Low-Maintenance

Low maintenance

Easy to clean and holds on to paint well.

Resistant-to-Termite-Damage

Resistent to termite damage

Stands up to termite attack.

Made-in-Australia

Australian made

Choose Hardie™ fibre cement to support local manufacturing.

See more cladding products

EasyLap™ Panel

EasyLap™ Panel

EasyLap™ Panel is a pre-primed fibre cement sheet with a shiplap joint along its two vertical edges. Lightweight yet durable, EasyLap™ Panel is an easy to install, cost-effective broadwall cladding solution. Panels are finished with a site-applied, roll-on textured acrylic paint to achieve a subtle rendered texture look. EasyLap™ Panel can also be used as a substrate for an external tiled wall application. It has strong hanging power for tiles, capable of holding up to 50kg of tiles per square metre. The shiplap join makes it easier to install a level substrate for tiling. It also helps to reduce the risk of differential movement that can result in grout cracks. It is available in multiple sizes, including 3600mm lengths ideal for tall, continuous feature walls. EasyLap™ Panel is designed for use in residential single and medium-density buildings, including alterations and additions, where a uniform broad wall cladding is required. Panels are suitable for use on either timber or light gauge steel framed homes. __Key Features__ - An easy and cost-effective way to create textured look and feel - Can be used for tiling applications – refer to the External Tiling Guide below - Fire resistant - adheres to bushfire attack level requirements of BAL40 - Resistant to rot, and damage from moisture and termites - 25-year product warranty - Australian made

Hardie™ Fine Texture Cladding

Hardie™ Fine Texture Cladding

Achieve a modern, minimalist aesthetic with Hardie™ Fine Texture Cladding. Hardie™ Fine Texture Cladding is a pre-textured fibre cement panel. The natural sand texture adds warmth and diffuses light, giving your new home, renovation or extension a fine matte finish. Hardie™ embedded texture technology creates beautiful consistent textures without the need for renderers, and the panels come pre-sealed and ready to paint. It’s durable and lower maintenance than traditional cement render to stay looking good for many years to come. It is available in 1200mm wide sheets in common wall heights up to 3600mm for minimal joints and maximum coverage. __Key Features__ - Shiplap joining system eliminates need to tape and set joints and reduces risk of cracking - Compatible with a suite of architect-designed accessories for a detailed finish in horizontal joints and corners - Fire resistant - adheres to bushfire attack level BAL40 - Resistant to rot, and damage from termites and moisture - Can be installed to timber or light gauge steel frames - CodeMark certified - 25-year product warranty ![australian-made-logo](//images.ctfassets.net/rg5y8r6t6cjr/2s0SCDct7xoVfAooJNxFlt/6d25b7f131acd6e695bf2069e537d688/australian-made-logo.png) ![good-design-banner](//images.ctfassets.net/rg5y8r6t6cjr/5ByY7aUp528Btie7zIoCT2/c448a20cb056129d64b17af95015e6cb/good-design-banner-sep22-3.png)![GreenTag GreenRate](//images.ctfassets.net/rg5y8r6t6cjr/63axGyuKLuJI0Zx7ekUKL7/6ce1372a7ee0a1034362e99d0690b5b2/GreenTag_GreenRate.png) Discover which Hardie™ fibre cement products are GreenRate™ certified and more on our [Sustainability & ESG page](https://www.jameshardie.com.au/sustainability-esg-initiatives).

Axon™ Cladding

Axon™ Cladding

Introduce drama and detail to your walls with the clean vertical lines of Axon™ Cladding. Axon™ Cladding is a range of vertically grooved panels which incorporate the beauty and fine detail of painted vertical joint timber with the benefits of Hardie™ fibre cement. Axon™ Cladding provides the efficiency of a large panel and comes in a range of heights to suit common wall sizes, which helps to reduce waste. Featuring a stepped shiplap joint on the long edges for easy installation, it can be gun nailed and cut cleanly with a circular saw using a dust-reducing fibre cement blade. Axon™ Cladding is available in two groove spacing options to give the appearance of narrow and wide board sizes. Axon™ Cladding 133mm Smooth and Axon™ Cladding 400mm Smooth are smooth textured panels with vertical grooves spaced 133mm and 400mm apart respectively. Axon™ Cladding 133mm Grained has a textured finish to evoke that of timber. __Key Features__ - The vertical 9mm wide grooves imitate vertical joint timber cladding or paneling - Shiplap joints remove the need for joint setting to help speed up construction - Fire resistant - adheres to bushfire attack level BAL40 - Resistant to rot, and damage from termites and moisture - Can be installed to timber or light gauge steel frames - CodeMark certified - 25-year product warranty ![australian-made-logo](//images.ctfassets.net/rg5y8r6t6cjr/2s0SCDct7xoVfAooJNxFlt/6d25b7f131acd6e695bf2069e537d688/australian-made-logo.png)![GreenTag GreenRate](//images.ctfassets.net/rg5y8r6t6cjr/63axGyuKLuJI0Zx7ekUKL7/6ce1372a7ee0a1034362e99d0690b5b2/GreenTag_GreenRate.png) Discover which Hardie™ fibre cement products are GreenRate™ certified and more on our [Sustainability & ESG page](https://www.jameshardie.com.au/sustainability-esg-initiatives).
