Stria Cladding Smooth

Strong lines suit modern designs

1/4
Stria™ Cladding Smooth
Stria™ Cladding Smooth

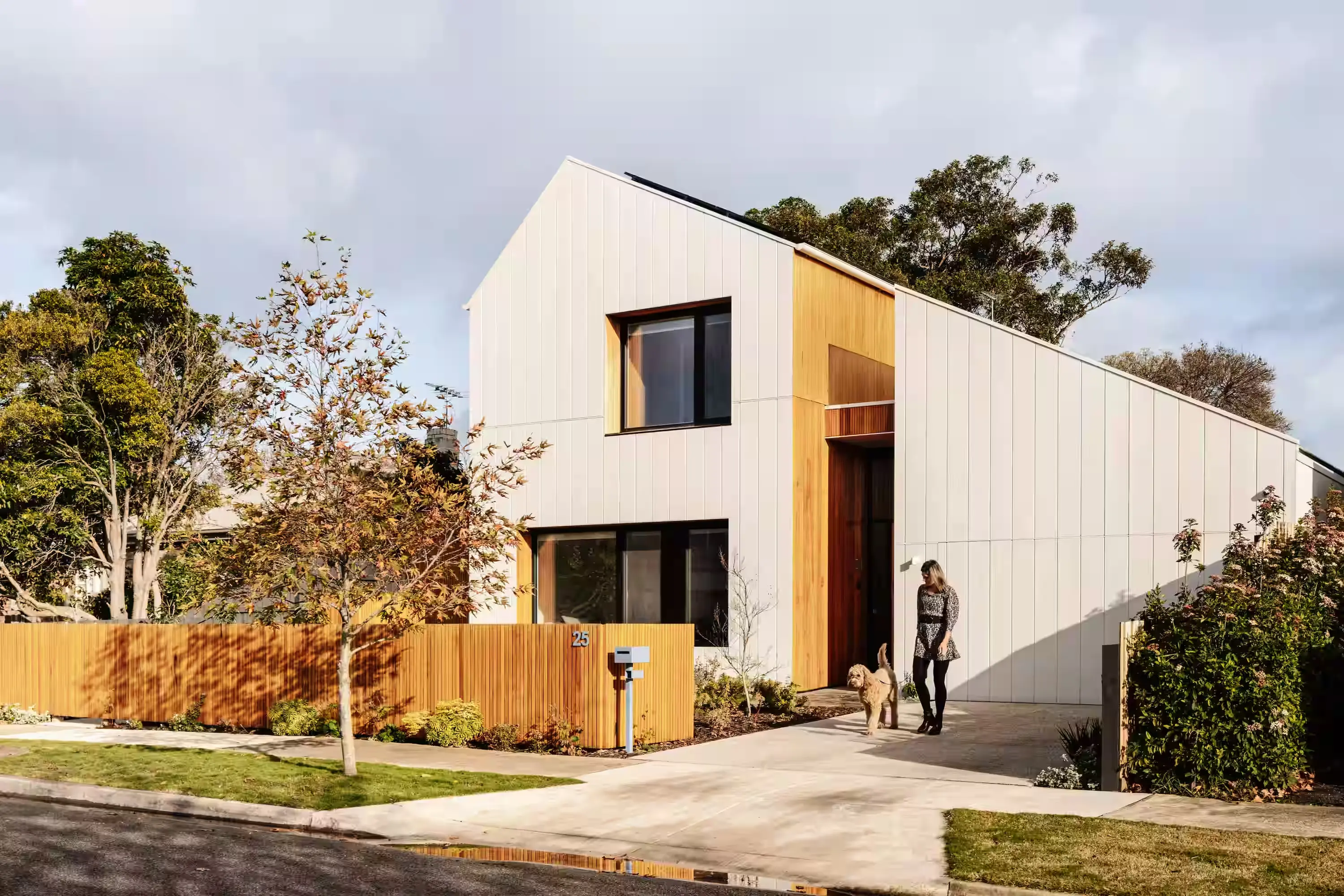

Stria™ Cladding Smooth | Sunny Passivhaus | G-Lux Builders | Altereco Design | Marnie Hawson Photography
Stria™ Cladding Smooth | Sunny Passivhaus | G-Lux Builders | Altereco Design | Marnie Hawson Photography 325mm width
1/4

We’ve tailored this for you. Select what best describes you.

I’m a
Homeowner

Achieve a range of sleek looks with customisable Stria Cladding.

Featuring deep grooves, Stria™ Cladding creates strong horizontal or vertical line details in modern home designs. Clean and sophisticated, Stria™ Cladding is the perfect solution for contemporary designs that require a bold but pared-back aesthetic.

Read more details

Available in 325mm and 405mm widths, the boards are 14mm thick with shiplap joints that leave 15mm-wide horizontal grooves for strong, clean lines. Introduce design versatility into your home by varying the application: alternate between different board widths, orient the boards vertically, or panelise them with the vertical flashing stop accessory. The boards are pre-sealed and ready to paint.

Show less


Widths available

width
325mm
width
405mm

Stria™ also comes in ...

product

Stria™ Cladding Fine Texture

Introducing Stria™ Cladding Fine Texture: an extension of our popular Stria™ Cladding range and new addition to the Hardie™ Architectural Collection. The 14mm thick board features a sharp v-groove combined with an embedded fine render texture for a robust feel on the ground floor. The interlocking edges allow for quick and easy installation, and concealed fix with minimal face fixing or patching required. Hardie™ embedded texture technology creates beautiful, consistent textures without the need for specialist tradespeople, and the boards come pre-primed and ready to paint. Available in 3000mm and 4200mm board lengths, vertical installation is ideal for creating Box Modern, Barn or Modern Farmhouse designs. Alternatively, stack the boards horizontally for a more traditional render look without the weight of masonry. __Also available:__ [Stria™ Cladding Smooth](https://www.jameshardie.com.au/productrange/stria-cladding-smooth) Key Features - The interlocking edges allow for quick and easy installation - The Hardie™ Structural Batten makes vertical installation easy - Fire resistant - adheres to bushfire attack level BAL40 - Resistant to rot, and damage from termites and moisture - Can be installed to timber or light gauge steel frames - CodeMark certified - 25-year product warranty ![australian-made-logo](//images.ctfassets.net/rg5y8r6t6cjr/2s0SCDct7xoVfAooJNxFlt/6d25b7f131acd6e695bf2069e537d688/australian-made-logo.png)![GreenTag GreenRate](//images.ctfassets.net/rg5y8r6t6cjr/63axGyuKLuJI0Zx7ekUKL7/6ce1372a7ee0a1034362e99d0690b5b2/GreenTag_GreenRate.png) Discover which Hardie™ fibre cement products are GreenRate™ certified and more on our [Sustainability & ESG page](https://www.jameshardie.com.au/sustainability-esg-initiatives).

Features & Benefits

There’s a Display Home few kms away from you!

Inspiring Modern Display Homes near you

Make home, feel like home

Real home transformations and inspiration

Product Specifications

Product Code

Description

Length (mm)

Width (mm)

Thickness (mm)

Surface Texture

Effective Cover Per Unit (m2)

Effective Width (mm)

Linear Meters Per Pack

Weight Per m2*

Weight Per Unit**

Pieces Per Pack

Pack Weight (kg)***

405504

Stria™ Cladding 325mm

3000

325

14

Smooth

0.9

300

180

19.1

17.2

60

1085

404063

Stria Cladding 325mm

4200

325

14

Smooth

1.26

300

252

19.1

24.1

60

1495

405505

Stria™ Cladding 405mm

3000

405

14

Smooth

1.14

380

120

19.4

22.2

40

940

404413

Stria™ Cladding 405mm

4200

405

14

Smooth

1.6

380

168

19.4

31

40

1295

* M2 weight includes on the wall product only weight taking into account effective coverage. This excludes fasteners, sealants and other accessories.

** Piece weight covers the physical product weight per plank/sheet.

*** Pack weight includes all product and packaging in a full pallet.

Share table

Resources

All the relevant files, certifications and documents for Stria™ Cladding Smooth.

Guides

Vertical Installation Guide
Horizontal Installation Guide
Application Guide: Joints and Junctions
Best Practice Guide

Certifications

Codemark Certification

Warranty

25-Year Warranty

Downloads

BIM Downloads

Why not visualise it on your home?

See how styles, colours, and products look on your own house with our Hardie™ AI Visualiser.

Why choose Hardie Fibre Cement?

Modern-Look

Modern look

Provides contemporary clean lines and pared-back aesthetics for homes with simple, bold forms.

Weather-Resistant

Weather resistant

Engineered to stand up to harsh Australian environments, including  coastal conditions.

Fire-Resistant

Fire resistant

Will not contribute to the spread of fire.

Resistant-to-Moisture-Damage

Resistant to moisture damage

Offers dimensional stability resisting swelling, movement and warping.

Easy-to-Paint

Flexible colour

Pre-primed or pre-sealed and ready to paint in any colour.

Low-Maintenance

Low maintenance

Easy to clean and holds on to paint well.

Resistant-to-Termite-Damage

Resistent to termite damage

Stands up to termite attack.

Made-in-Australia

Australian made

Choose Hardie™ fibre cement to support local manufacturing.

Expand the design possibilities. Combine Stria Cladding Smooth with:

Linea™ Weatherboard

Linea™ Weatherboard

Create Modern Coastal or Hamptons looks with the deep shadow and clean horizontal lines of Linea™ Weatherboard. Linea™ Weatherboard is a pre-primed, thick horizontal weatherboard with deep shadow lines, available in 150mm and 180mm widths. With Linea™ Weatherboard, you can harness the features and charm of weatherboard styles with the benefits of Hardie™ fibre cement. The 16mm thickness enables handy tongue and groove short ends for clean butt joins, even off-stud. Made to withstand our harsh Australian climate, Linea™ Weatherboard is resistant to shrinking, swelling and warping, which can help to maintain your paint finish for longer. __Key Features__ - Can be installed where the fixings are concealed by the board above helping to reduce patching and sanding. The boards are back-bevelled to sit flush with frames - Corner soaker and slimline box corner accessories reduce construction time doing mitred corners or building weatherboards stops - Fire resistant - adheres to bushfire attack level BAL40 - Resistant to rot, and damage from termites and moisture - Can be installed to timber or light gauge steel frames - CodeMark certified - 25-year product warranty ![australian-made-logo](//images.ctfassets.net/rg5y8r6t6cjr/2s0SCDct7xoVfAooJNxFlt/6d25b7f131acd6e695bf2069e537d688/australian-made-logo.png)![GreenTag GreenRate](//images.ctfassets.net/rg5y8r6t6cjr/63axGyuKLuJI0Zx7ekUKL7/6ce1372a7ee0a1034362e99d0690b5b2/GreenTag_GreenRate.png) Discover which Hardie™ fibre cement products are GreenRate™ certified and more on our [Sustainability & ESG page](https://www.jameshardie.com.au/sustainability-esg-initiatives).
Hardie™ Fine Texture Cladding

Hardie™ Fine Texture Cladding

Achieve a modern, minimalist aesthetic with Hardie™ Fine Texture Cladding. Hardie™ Fine Texture Cladding is a pre-textured fibre cement panel. The natural sand texture adds warmth and diffuses light, giving your new home, renovation or extension a fine matte finish. Hardie™ embedded texture technology creates beautiful consistent textures without the need for renderers, and the panels come pre-sealed and ready to paint. It’s durable and lower maintenance than traditional cement render to stay looking good for many years to come. It is available in 1200mm wide sheets in common wall heights up to 3600mm for minimal joints and maximum coverage. __Key Features__ - Shiplap joining system eliminates need to tape and set joints and reduces risk of cracking - Compatible with a suite of architect-designed accessories for a detailed finish in horizontal joints and corners - Fire resistant - adheres to bushfire attack level BAL40 - Resistant to rot, and damage from termites and moisture - Can be installed to timber or light gauge steel frames - CodeMark certified - 25-year product warranty ![australian-made-logo](//images.ctfassets.net/rg5y8r6t6cjr/2s0SCDct7xoVfAooJNxFlt/6d25b7f131acd6e695bf2069e537d688/australian-made-logo.png) ![good-design-banner](//images.ctfassets.net/rg5y8r6t6cjr/5ByY7aUp528Btie7zIoCT2/c448a20cb056129d64b17af95015e6cb/good-design-banner-sep22-3.png)![GreenTag GreenRate](//images.ctfassets.net/rg5y8r6t6cjr/63axGyuKLuJI0Zx7ekUKL7/6ce1372a7ee0a1034362e99d0690b5b2/GreenTag_GreenRate.png) Discover which Hardie™ fibre cement products are GreenRate™ certified and more on our [Sustainability & ESG page](https://www.jameshardie.com.au/sustainability-esg-initiatives).
Hardie™ Brushed Concrete Cladding

Hardie™ Brushed Concrete Cladding

With the embedded swept texture reminiscent of softly brushed concrete, these fibre cement panels give your home a finish that’s visually sophisticated, and dynamic to the touch. The fresh, flowing lines of Hardie™ Brushed Concrete Cladding are ideal for creating modern minimalist facades with interest. Hardie™ embedded texture technology creates beautiful consistent textures without the need for artisan trades people, and the panels come pre-sealed and ready to paint. Hardie™ Brushed Concrete Cladding is available in 1200mm wide sheets in common wall heights up to 3600mm for minimal joints and maximum coverage. It’s suitable for ground floor and mixed-story applications, allowing you to make modern with confidence. __Key Features__ - The panels are connected to each other with shiplap joints, cut to size and typically gun-nailed with no patching - Compatible with a suite of architect-designed accessories for a detailed finish in horizontal joints and corners - Fire resistant - adheres to bushfire attack level requirements of BAL40 - Resistant to rot, and damage from termites and moisture - Can be installed to timber or light gauge steel frames - CodeMark certified - 25-year product warranty ![australian-made-logo](//images.ctfassets.net/rg5y8r6t6cjr/2s0SCDct7xoVfAooJNxFlt/6d25b7f131acd6e695bf2069e537d688/australian-made-logo.png)![GreenTag GreenRate](//images.ctfassets.net/rg5y8r6t6cjr/63axGyuKLuJI0Zx7ekUKL7/6ce1372a7ee0a1034362e99d0690b5b2/GreenTag_GreenRate.png) Discover which Hardie™ fibre cement products are GreenRate™ certified and more on our [Sustainability & ESG page](https://www.jameshardie.com.au/sustainability-esg-initiatives).
