ExoTec™ Facade Panel and System
A compliant facade panel with expressed jointing system
1/4
1/4
We’ve tailored this for you. Select what best describes you.
I’m a
Homeowner
ExoTec™ Facade Panel provides a durable,
expressed joint panel appearance for building facades and fascias and, together with the ExoTec™ fixing system, offers versatility to architects and builders. ExoTec™ Facade Panels provide a durable, expressed joint panel appearance for building facades and fascias. The proprietary fixing system makes installation fast and cost-effective.
Read more details
A variety of design styles can be created including curved walls, panels installed upright vertically, horizontally or in a brick pattern. For a custom look, it can be painted on-site with a wide range of acrylic textures or factory finished off-site in polyurethane or metallic colours.
Show less
Features & Benefits

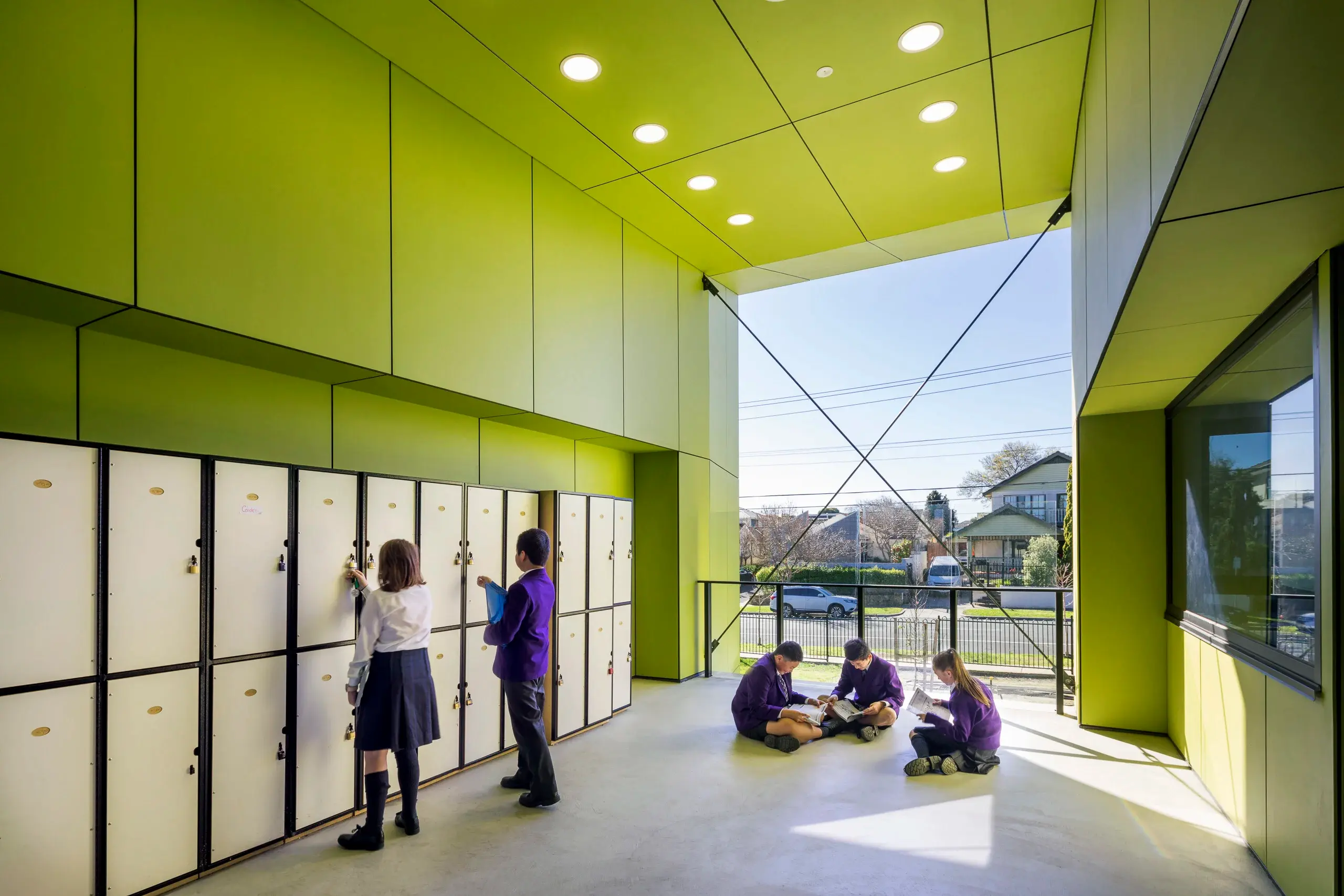

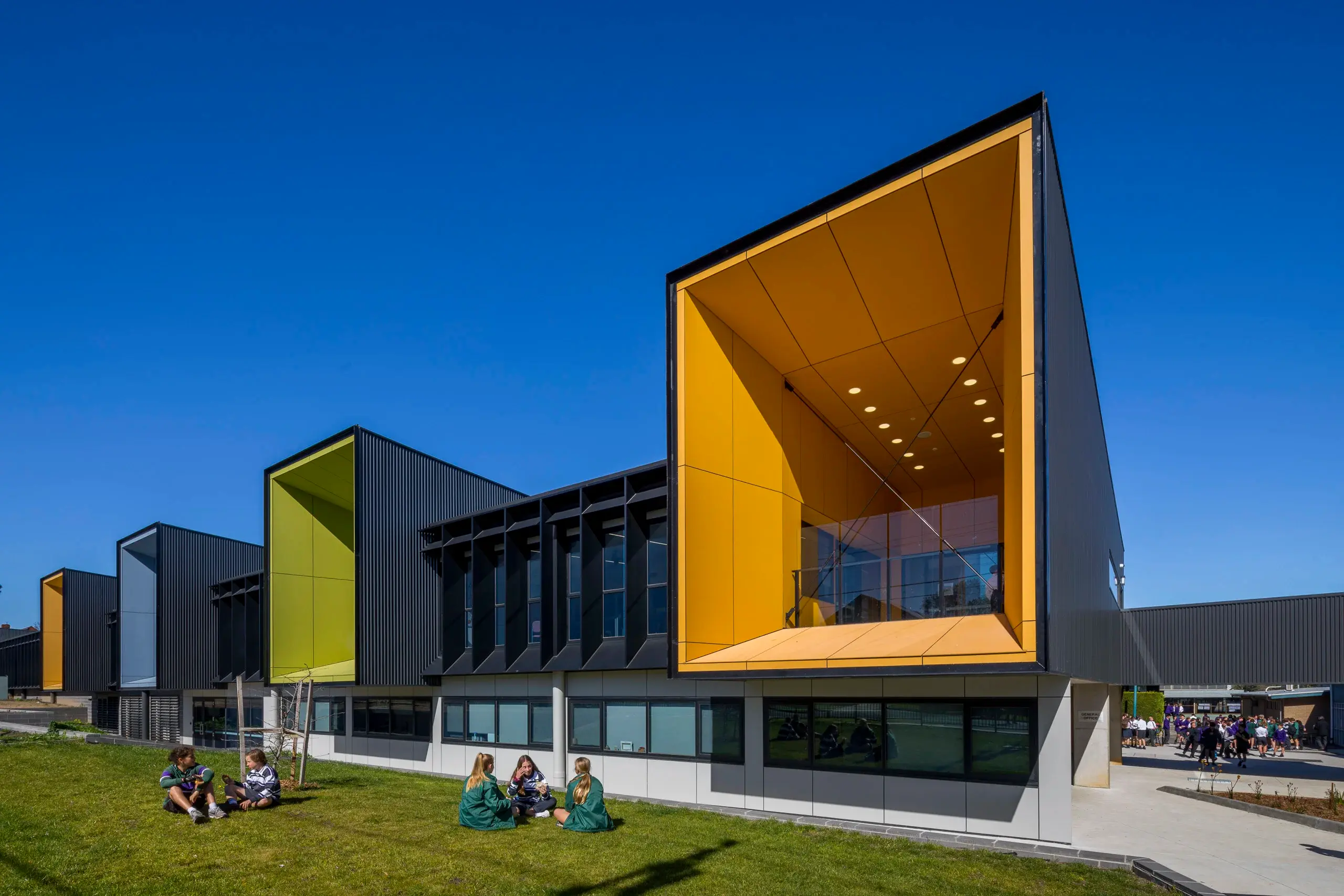

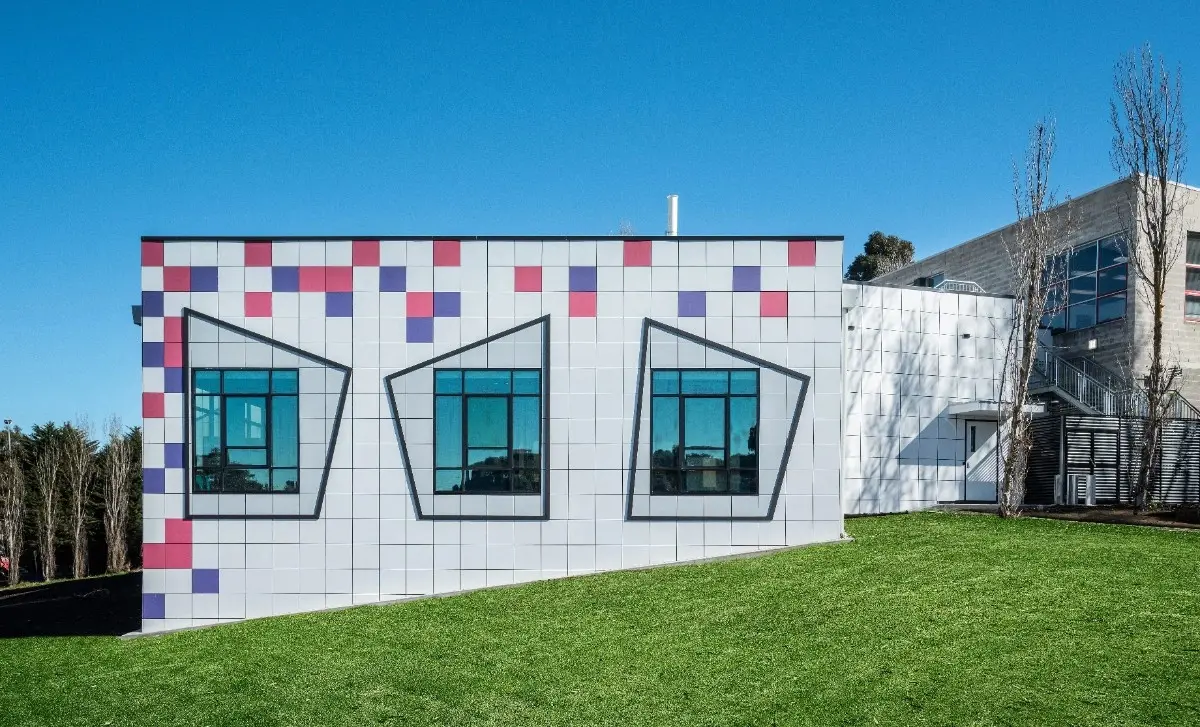

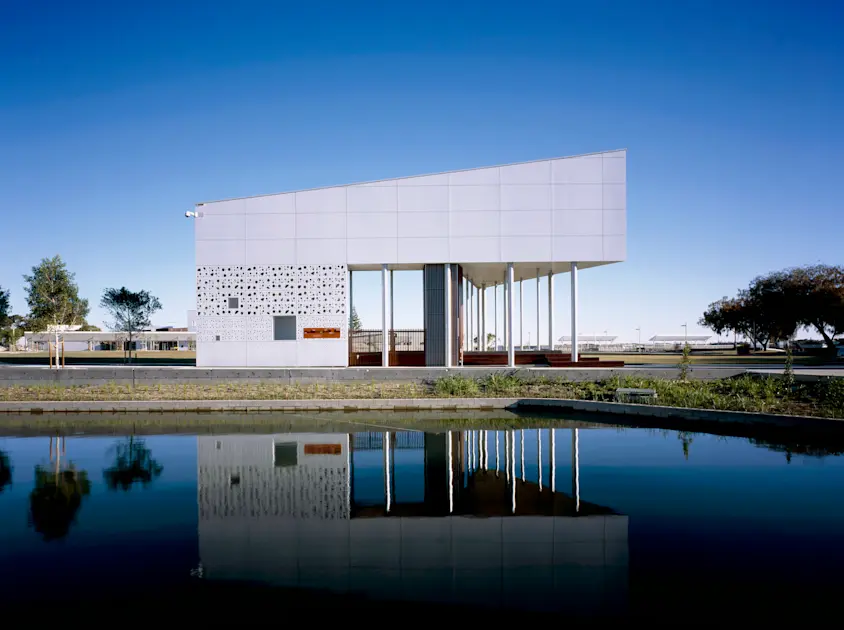

See ExoTec™ Facade Panel and System stories from around Australia
Product Specifications
Product Code | Length (mm) | Width (mm) | Thickness (mm) | Surface Texture | Effective Cover Per Unit (m2) | Effective Width (mm) | Coverage Per Pack (m2) | Weight Per m2* | Weight Per Unit** | Pieces Per Pack | Pack Weight (kg)*** |
|---|---|---|---|---|---|---|---|---|---|---|---|
402205 | 2400 | 1200 | 9 | Smooth | 2.88 | 1200 | 46.08 | 17.2 | 49.4 | 16 | 815 |
402209 | 3000 | 1200 | 9 | Smooth | 3.6 | 1200 | 57.6 | 17.2 | 61.8 | 16 | 1015 |
* M2 weight includes on the wall product only weight taking into account effective coverage. This excludes fasteners, sealants and other accessories.
** Piece weight covers the physical product weight per plank/sheet.
*** Pack weight includes all product and packaging in a full pallet.
Share table
Resources
All the relevant files, certifications and documents for ExoTec™ Facade Panel and System.
Guides
Installation Guide
Best Practice Guide
Certifications
Codemark Certification
Warranty
15-Year Warranty
Why choose Hardie™ Fibre Cement?
Modern look
Provides contemporary clean lines and pared-back aesthetics for homes with simple, bold forms.
Weather resistant
Engineered to stand up to harsh Australian environments, including coastal conditions.
Fire resistant
Will not contribute to the spread of fire.
Resistant to moisture damage
Offers dimensional stability resisting swelling, movement and warping.
Flexible colour
Pre-primed or pre-sealed and ready to paint in any colour.
Low maintenance
Easy to clean and holds on to paint well.
Resistent to termite damage
Stands up to termite attack.
Australian made
Choose Hardie™ fibre cement to support local manufacturing.
