Evoke a bold, contemporary aesthetic with the wide grooves and bespoke design flexibility of Hardie™ Oblique™ Cladding
Defined by its striking proportions, this cladding enables the creation of standout, one-of-a-kind facades.
Read more details

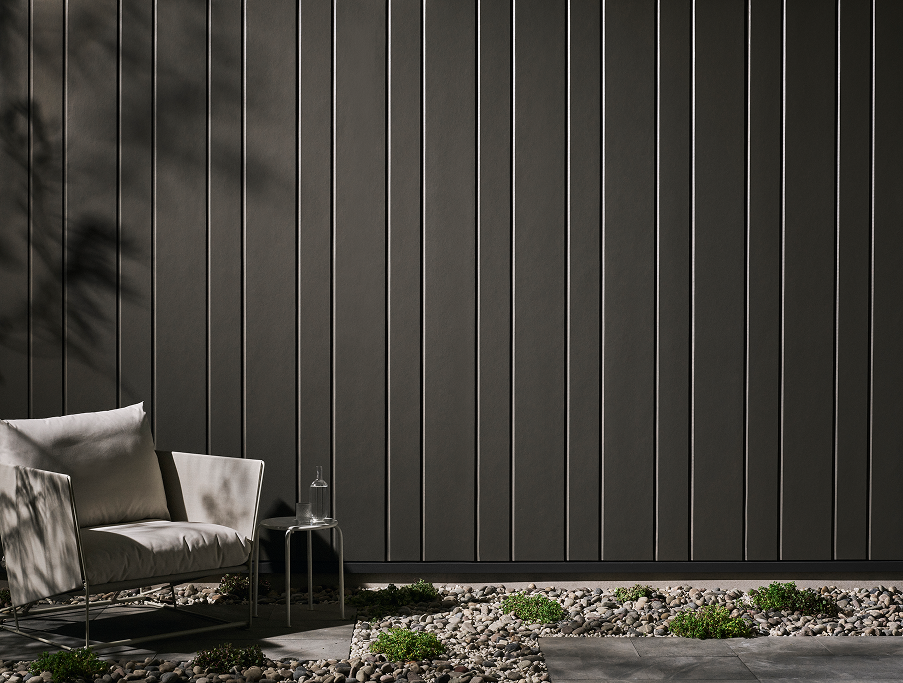

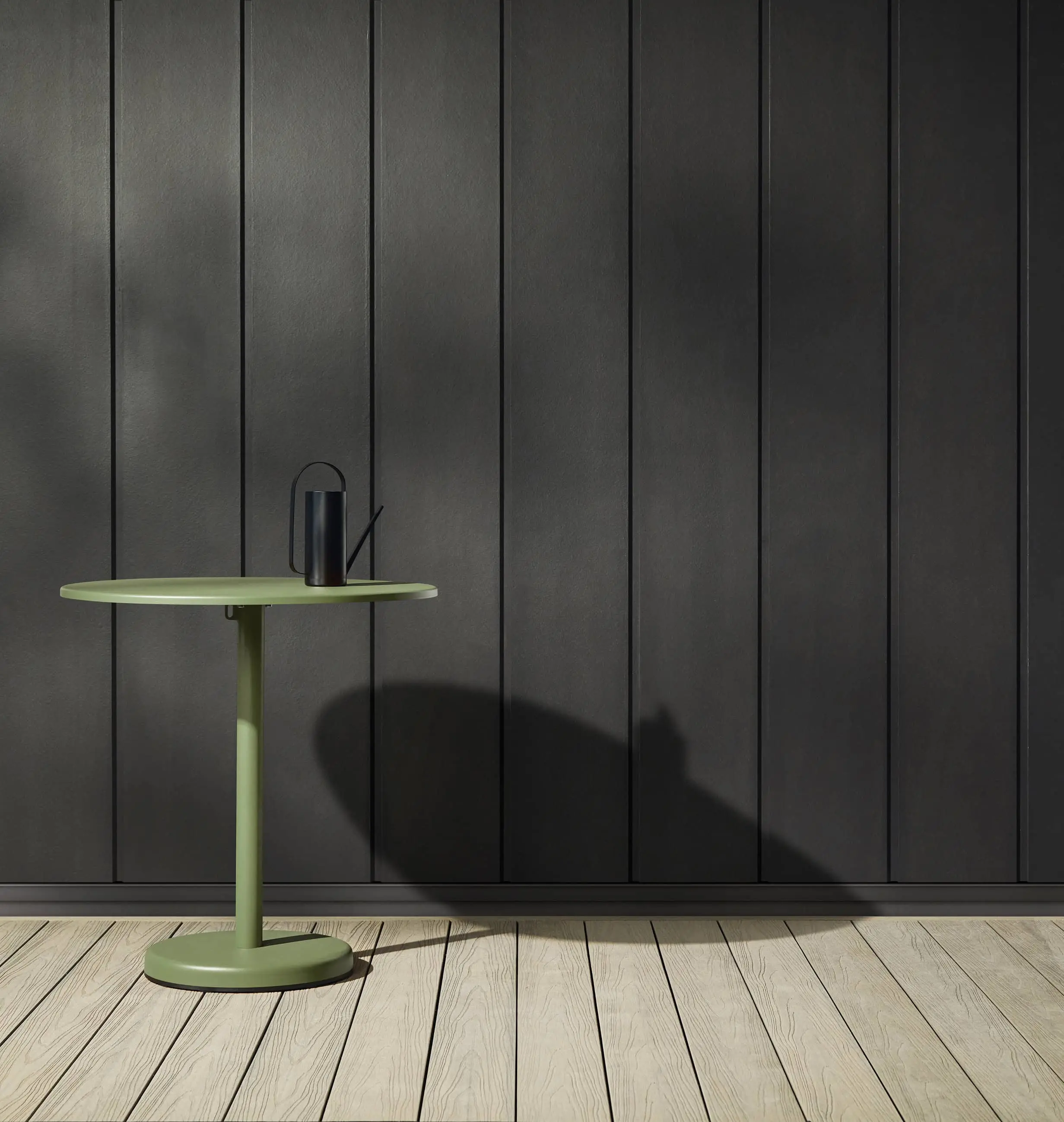

Hardie™ Oblique™ Cladding exemplifies modern minimalism, delivering drama and interest to facades. Available in 200mm and 300mm widths, these 14mm thick shiplap boards offer multiple installation options and can be arranged in alternating or bespoke patterns. The unique square and angled groove edges cast highlights and shadows that bring rhythm and depth to walls.
Show less
Widths available
200mm
300mm
Features & Benefits

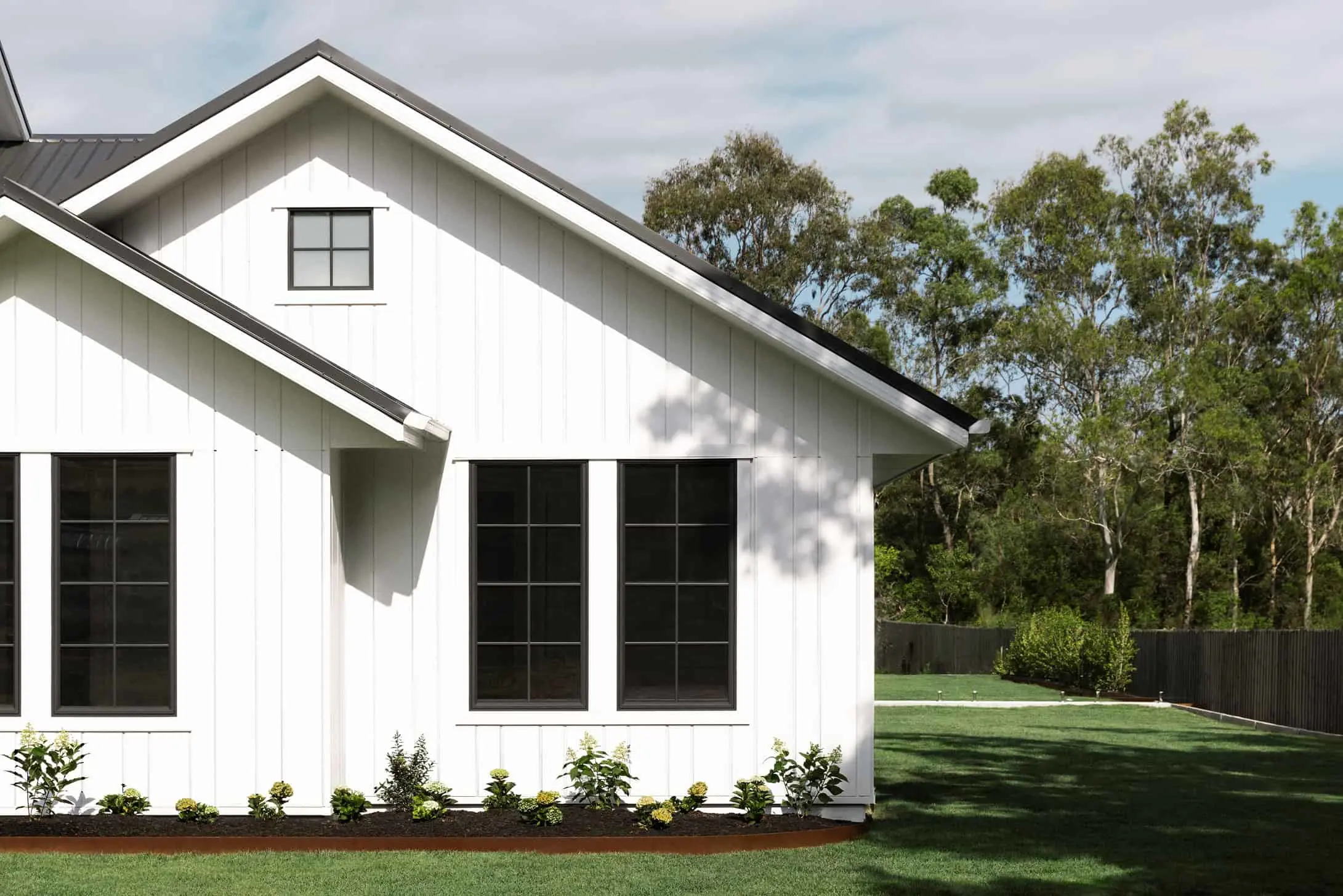

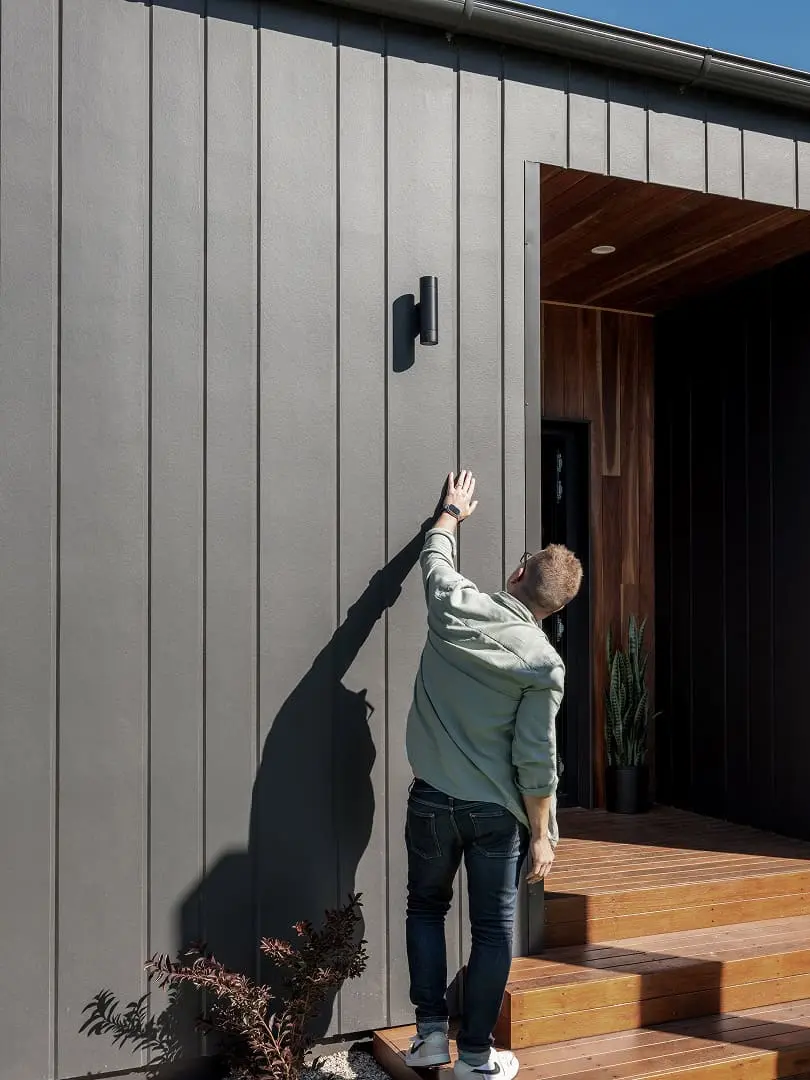

See Hardie™ Oblique™ Cladding stories from around Australia
There’s a Display Home few kms away from you!
Inspiring Modern Display Homes near you
Make home, feel like home
Real home transformations and inspiration
Product Specifications
Product Code | Description | Length (mm) | Width (mm) | Thickness (mm) | Groove Spacing (mm) | Effective Cover Per Unit (m2) | Effective Width (mm) | Linear Meters Per Pack | Weight Per m2* | Weight Per Unit** | Pieces Per Pack | Pack Weight (kg)*** |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
405502 | Hardie Oblique Cladding 200mm | 3000 | 200 | 14 | 175 | 0.53 | 175 | 225 | 18.4 | 9.6 | 75 | 815 |
405301 | Hardie Oblique Cladding 200mm | 4200 | 200 | 14 | 175 | 0.74 | 175 | 315 | 18.4 | 13.4 | 75 | 1120 |
405503 | Hardie Oblique Cladding 300mm | 3000 | 300 | 14 | 275 | 0.83 | 275 | 135 | 18.8 | 15.5 | 45 | 755 |
405303 | Hardie Oblique Cladding 300mm | 4200 | 300 | 14 | 275 | 1.16 | 275 | 189 | 18.8 | 21.6 | 45 | 1035 |
* M2 weight includes on the wall product only weight taking into account effective coverage. This excludes fasteners, sealants and other accessories.
** Piece weight covers the physical product weight per plank/sheet.
*** Pack weight includes all product and packaging in a full pallet.
Share table
Resources
All the relevant files, certifications and documents for Hardie™ Oblique™ Cladding.
Guides
Vertical Installation Guide
Horizontal Installation Guide
Application Guide: Joints and Junctions
Best Practice Guide
Certifications
Codemark Certification
Warranty
25-Year Warranty
BIM Content
BIM Downloads
Why not visualise it on your home?
See how styles, colours, and products look on your own house with our Hardie™ AI Visualiser.
Why choose Hardie™ Fibre Cement?
Modern look
Provides contemporary clean lines and pared-back aesthetics for homes with simple, bold forms.
Weather resistant
Engineered to stand up to harsh Australian environments, including coastal conditions.
Fire resistant
Will not contribute to the spread of fire.
Resistant to moisture damage
Offers dimensional stability resisting swelling, movement and warping.
Flexible colour
Pre-primed or pre-sealed and ready to paint in any colour.
Low maintenance
Easy to clean and holds on to paint well.
Resistent to termite damage
Stands up to termite attack.
Australian made
Choose Hardie™ fibre cement to support local manufacturing.
See more vertical groove cladding products
Frequently asked questions
What formats and installation options are available?
Hardie™ Oblique™ Cladding is a 14 mm shiplap fibre cement board in 200 mm and 300 mm widths that can be installed vertically or horizontally to create bespoke patterns. For vertical installs, use the Hardie™ Structural Batten to enable drainage/ventilation and simplify layout.
Is Hardie™ Oblique™ Cladding certified and suitable for bushfire areas?
Yes. Hardie™ Oblique™ Cladding is CodeMark certified (CM40223) and is suitable up to BAL 40 when installed per guidance.
What warranty applies to Hardie™ Oblique™ Cladding?
Hardie™ Oblique™ Cladding carries a 25-year residential product warranty.
